Multi-Tenant Configuration Schema

This Version: http://purl.org/vocab/multi-tenant-configuration/schema-20090513 [HTML] [RDF]
Latest Version: #
Authors: Rob Styles
Contributors

This work is licensed under a Creative Commons License.

Introduction
Namespace
Summary of Terms
Vocabulary Classes
Vocabulary Properties
Examples
RDF Schema
License

Introduction

The Multi-Tenant Configuration Schema provides

Changes From Previous Version

2009-05-13 - semantic change by Rob Styles: "First draft of the ontology published"

Namespace

The URI for this vocabulary is

http://purl.org/vocab/multi-tenant-configuration/schema#

When used in XML documents the suggested prefix is multi-tenant

Each class or property in the vocabulary has a URI constructed by appending a term name to the vocabulary URI. For example:

#customer
#Customer

The term name for a class always starts with an uppercase character. Where the term name is comprised of multiple concatenated words, the leading character of each word will be an uppercase character. For example:

Customer
Tenancy

The term name for a property always starts with an lowercase character. Where the term name is comprised of multiple concatenated words, the leading character of the second and each subsequent word will be an uppercase character. For example:

customer
tenancy

Summary of Terms

This vocabulary defines 6 classes and 11 properties .

Term Name	Type	Definition
Customer	class	A customer represents your customer. They may have zero or more tenancies. We need to consider how this class relates to foaf:Agent and possibly other ontologies describing CRM models.
Feature	class	You can describe features within your own namespace, relating them to different subscription levels.
Subscription	class	Subscription resources track the periods for which a customer has subscribed to the service and at what subscription level.
SubscriptionLevel	class	Subscription Level resources allow your application to tailor its feature set based on subscription levels you define within your own namespace.
Tenancy	class	A tenancy represents the area or part of the service that is owned by a particular customer. A customer may own more than one tenancy.
TenancyType	class	Tenancy Types allow the tenancies of different systems to be distinguished within a single graph. You should define a tenancy type within your own namespace for each multi-tenant application you are describing tenancies for.
allowedFeature	property	A feature that is allowed for subscriptions at this subscription level. This allows for a white-listing approach to feature control.
createdAt	property	The date on which the tenancy was created. Managing this allows multiple tenancies to be displayed in time order.
customer	property	The customer property links a Tenancy with the Customer who owns it.
disallowedFeature	property	A feature that is not allowed for subscriptions at this subscription level. This allows for a black-listing approach to feature control.
enabled	property	A simple boolean value that allows a tenancy to be enabled or disabled entirely.
subscription	property	A subscription that enables the use of this tenancy.
subscriptionLevel	property	The level at which the customer has subscribed to this tenancy.
tenancy	property	The tenancy property links a Customer with the tenancies they own.
tenancyType	property	The type of tenancy this resource describes.
validFrom	property	The date from which a subscription is valid.
validUntil	property	The date on which a subscription expires.

Vocabulary Classes

Class: Customer

A customer represents your customer. They may have zero or more tenancies. We need to consider how this class relates to foaf:Agent and possibly other ontologies describing CRM models.

URI:	#Customer
Label:	Customer

History

2009-05-13 - first issued

Class: Feature

You can describe features within your own namespace, relating them to different subscription levels.

URI:	#Feature
Label:	Feature

History

2009-05-13 - first issued

Class: Subscription

Subscription resources track the periods for which a customer has subscribed to the service and at what subscription level.

URI:	#Subscription
Label:	Subscription

History

2009-05-13 - first issued

Class: SubscriptionLevel

Subscription Level resources allow your application to tailor its feature set based on subscription levels you define within your own namespace.

URI:	#SubscriptionLevel
Label:	Subscription Level

History

2009-05-13 - first issued

Class: Tenancy

A tenancy represents the area or part of the service that is owned by a particular customer. A customer may own more than one tenancy.

URI:	#Tenancy
Label:	Tenancy

History

2009-05-13 - first issued

Class: TenancyType

Tenancy Types allow the tenancies of different systems to be distinguished within a single graph. You should define a tenancy type within your own namespace for each multi-tenant application you are describing tenancies for.

URI:	#TenancyType
Label:	Tenancy Type

History

2009-05-13 - first issued

Vocabulary Properties

Property: allowedFeature

A feature that is allowed for subscriptions at this subscription level. This allows for a white-listing approach to feature control.

URI:	#allowedFeature
Label:	Allowed Feature
Domain	multi-tenant:SubscriptionLevel
Range	multi-tenant:Feature
Paraphrase (experimental)	Having a multi-tenant:allowedFeature implies being something that, amongst other things, is a multi-tenant:SubscriptionLevel

History

2009-05-13 - first issued

Property: createdAt

The date on which the tenancy was created. Managing this allows multiple tenancies to be displayed in time order.

URI:	#createdAt
Label:	Created
Domain	multi-tenant:Tenancy
Range	xsd:dateTime
Paraphrase (experimental)	Having a multi-tenant:createdAt implies being something that, amongst other things, is a multi-tenant:Tenancy

History

2009-05-13 - first issued

Property: customer

The customer property links a Tenancy with the Customer who owns it.

URI:	#customer
Label:	Customer
Domain	multi-tenant:Tenancy
Range	multi-tenant:Customer
Inverse of	multi-tenant:tenancy
Paraphrase (experimental)	Having a multi-tenant:customer implies being something that, amongst other things, is a multi-tenant:Tenancy

History

2009-05-13 - first issued

Property: disallowedFeature

A feature that is not allowed for subscriptions at this subscription level. This allows for a black-listing approach to feature control.

URI:	#disallowedFeature
Label:	Disallowed Feature
Domain	multi-tenant:SubscriptionLevel
Range	multi-tenant:Feature
Paraphrase (experimental)	Having a multi-tenant:disallowedFeature implies being something that, amongst other things, is a multi-tenant:SubscriptionLevel

History

2009-05-13 - first issued

Property: enabled

A simple boolean value that allows a tenancy to be enabled or disabled entirely.

URI:	#enabled
Label:	Enabled
Domain	multi-tenant:Tenancy
Range	xsd:boolean
Paraphrase (experimental)	Having a multi-tenant:enabled implies being something that, amongst other things, is a multi-tenant:Tenancy

History

2009-05-13 - first issued

Property: subscription

A subscription that enables the use of this tenancy.

URI:	#subscription
Label:	Subscription
Domain	multi-tenant:Tenancy
Range	multi-tenant:TenancyType
Paraphrase (experimental)	Having a multi-tenant:subscription implies being something that, amongst other things, is a multi-tenant:Tenancy

History

2009-05-13 - first issued

Property: subscriptionLevel

The level at which the customer has subscribed to this tenancy.

URI:	#subscriptionLevel
Label:	Subscription Level
Domain	multi-tenant:Subscription
Range	xsd:dateTime
Paraphrase (experimental)	Having a multi-tenant:subscriptionLevel implies being something that, amongst other things, is a multi-tenant:Subscription

History

2009-05-13 - first issued

Property: tenancy

The tenancy property links a Customer with the tenancies they own.

URI:	#tenancy
Label:	Tenancy
Domain	multi-tenant:Tenancy
Range	multi-tenant:Customer
Inverse of	multi-tenant:customer
Paraphrase (experimental)	Having a multi-tenant:tenancy implies being something that, amongst other things, is a multi-tenant:Tenancy

History

2009-05-13 - first issued

Property: tenancyType

The type of tenancy this resource describes.

URI:	#tenancyType
Label:	Tenancy Type
Domain	multi-tenant:Tenancy
Range	multi-tenant:TenancyType
Paraphrase (experimental)	Having a multi-tenant:tenancyType implies being something that, amongst other things, is a multi-tenant:Tenancy

History

2009-05-13 - first issued

Property: validFrom

The date from which a subscription is valid.

URI:	#validFrom
Label:	Valid From
Domain	multi-tenant:Subscription
Range	xsd:dateTime
Paraphrase (experimental)	Having a multi-tenant:validFrom implies being something that, amongst other things, is a multi-tenant:Subscription

History

2009-05-13 - first issued

Property: validUntil

The date on which a subscription expires.

URI:	#validUntil
Label:	Valid Until
Domain	multi-tenant:Subscription
Range	xsd:dateTime
Paraphrase (experimental)	Having a multi-tenant:validUntil implies being something that, amongst other things, is a multi-tenant:Subscription

History

2009-05-13 - first issued

Examples

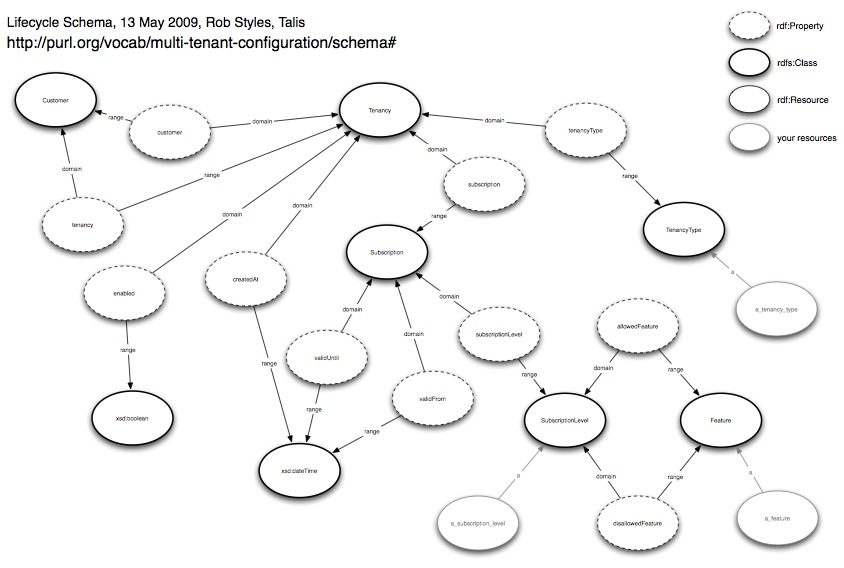

Diagram of Multi-Tenant Configuration Schema

RDF Schema

The schema included here is informational only. The normative schema can be found at http://purl.org/vocab/multi-tenant-configuration/schema-20090513.rdf

<rdf:RDF
   xmlns:multi-tenant="http://purl.org/vocab/multi-tenant-configuration/schema#"
   xmlns:xsd="http://www.w3.org/2001/XMLSchema#"
   xmlns:owl="http://www.w3.org/2002/07/owl#"
   xmlns:rdfs="http://www.w3.org/2000/01/rdf-schema#"
   xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#"
   xmlns:dc="http://purl.org/dc/elements/1.1/"
   xmlns:vann="http://purl.org/vocab/vann/"
   xmlns:dct="http://purl.org/dc/terms/"
   xmlns:dctype="http://purl.org/dc/dcmitype/"
   xmlns:cc="http://web.resource.org/cc/"
   xmlns:skos="http://www.w3.org/2004/02/skos/core#">

  <owl:Ontology
     rdf:about=""
     dc:date="2009-05-13">
    <dc:title xml:lang="en">Multi-Tenant Configuration Schema</dc:title>
    <rdfs:comment xml:lang="en">The Multi-Tenant Configuration Schema provides</rdfs:comment>
    <dc:identifier>
      http://purl.org/vocab/multi-tenant-configuration/schema-20090513
    </dc:identifier>
    <dct:isVersionOf rdf:resource="#"/>
    <dc:creator>Rob Styles</dc:creator>
    <dc:rights>Copyright © 2009 Talis Information Ltd</dc:rights>
    <vann:preferredNamespaceUri>http://purl.org/vocab/multi-tenant-configuration/schema#</vann:preferredNamespaceUri>
    <vann:preferredNamespacePrefix>multi-tenant</vann:preferredNamespacePrefix>
    <vann:example rdf:resource="schema-diagram.html"/>
    <dct:hasFormat>
      <dctype:Text rdf:about="http://purl.org/vocab/multi-tenant-configuration/schema-20090513.html">
        <dc:format>
          <dct:IMT>
            <rdf:value>text/html</rdf:value>
            <rdfs:label xml:lang="en">HTML</rdfs:label>
          </dct:IMT>
        </dc:format>
      </dctype:Text>
    </dct:hasFormat>
    <dct:hasFormat>
      <dctype:Text rdf:about="http://purl.org/vocab/multi-tenant-configuration/schema-20090513.rdf">
        <dc:format>
          <dct:IMT>
            <rdf:value>application/rdf+xml</rdf:value>
            <rdfs:label xml:lang="en">RDF</rdfs:label>
          </dct:IMT>
        </dc:format>
      </dctype:Text>
    </dct:hasFormat>
    <dct:issued>2009-05-13</dct:issued>
    <skos:historyNote
       rdf:value="First draft of the ontology published"
       dc:date="2009-05-13"
       dc:creator="Rob Styles"/>
  </owl:Ontology>

  <cc:Work rdf:about="">
    <cc:license rdf:resource="http://creativecommons.org/licenses/by/2.0/uk/"/>
  </cc:Work>

  <cc:License rdf:about="http://creativecommons.org/licenses/by/2.0/uk/">
    <cc:permits rdf:resource="http://web.resource.org/cc/Reproduction"/>
    <cc:permits rdf:resource="http://web.resource.org/cc/Distribution"/>
    <cc:requires rdf:resource="http://web.resource.org/cc/Notice"/>
    <cc:requires rdf:resource="http://web.resource.org/cc/Attribution"/>
    <cc:permits rdf:resource="http://web.resource.org/cc/DerivativeWorks"/>
  </cc:License>

  <rdfs:Class rdf:about="#Customer">
    <rdfs:label xml:lang="en">Customer</rdfs:label>
    <rdfs:comment xml:lang="en">
      A customer represents your customer. They may have zero or more
      tenancies. We need to consider how this class relates to foaf:Agent and
      possibly other ontologies describing CRM models.
    </rdfs:comment>
    <rdfs:isDefinedBy rdf:resource="#"/>
    <dct:issued>2009-05-13</dct:issued>
  </rdfs:Class>

  <rdfs:Class rdf:about="#Tenancy">
    <rdfs:label xml:lang="en">Tenancy</rdfs:label>
    <rdfs:comment xml:lang="en">
      A tenancy represents the area or part of the service that is owned by a
      particular customer. A customer may own more than one tenancy.
    </rdfs:comment>
    <rdfs:isDefinedBy rdf:resource="#"/>
    <dct:issued>2009-05-13</dct:issued>
  </rdfs:Class>

  <rdfs:Class rdf:about="#TenancyType">
    <rdfs:label xml:lang="en">Tenancy Type</rdfs:label>
    <rdfs:comment xml:lang="en">
      Tenancy Types allow the tenancies of different systems to be
      distinguished within a single graph. You should define a tenancy type
      within your own namespace for each multi-tenant application you are
      describing tenancies for.
    </rdfs:comment>
    <rdfs:isDefinedBy rdf:resource="#"/>
    <dct:issued>2009-05-13</dct:issued>
  </rdfs:Class>

  <rdfs:Class rdf:about="#Subscription">
    <rdfs:label xml:lang="en">Subscription</rdfs:label>
    <rdfs:comment xml:lang="en">
      Subscription resources track the periods for which a customer has
      subscribed to the service and at what subscription level.
    </rdfs:comment>
    <rdfs:isDefinedBy rdf:resource="#"/>
    <dct:issued>2009-05-13</dct:issued>
  </rdfs:Class>

  <rdfs:Class rdf:about="#SubscriptionLevel">
    <rdfs:label xml:lang="en">Subscription Level</rdfs:label>
    <rdfs:comment xml:lang="en">
      Subscription Level resources allow your application to tailor its
      feature set based on subscription levels you define within your own
      namespace.
    </rdfs:comment>
    <rdfs:isDefinedBy rdf:resource="#"/>
    <dct:issued>2009-05-13</dct:issued>
  </rdfs:Class>

  <rdfs:Class rdf:about="#Feature">
    <rdfs:label xml:lang="en">Feature</rdfs:label>
    <rdfs:comment xml:lang="en">
      You can describe features within your own namespace, relating them to
      different subscription levels.
    </rdfs:comment>
    <rdfs:isDefinedBy rdf:resource="#"/>
    <dct:issued>2009-05-13</dct:issued>
  </rdfs:Class>

  <rdf:Property rdf:about="#customer">
    <rdfs:label xml:lang="en">Customer</rdfs:label>
    <rdfs:comment>
      The customer property links a Tenancy with the Customer who owns it.
    </rdfs:comment>
    <rdfs:domain rdf:resource="#Tenancy"/>
    <rdfs:range rdf:resource="#Customer"/>
    <owl:inverseOf rdf:resource="#tenancy"/>
    <dct:issued>2009-05-13</dct:issued>
    <rdfs:isDefinedBy rdf:resource="#"/>
  </rdf:Property>

  <rdf:Property rdf:about="#tenancy">
    <rdfs:label xml:lang="en">Tenancy</rdfs:label>
    <rdfs:comment>
      The tenancy property links a Customer with the tenancies they own.
    </rdfs:comment>
    <rdfs:domain rdf:resource="#Tenancy"/>
    <rdfs:range rdf:resource="#Customer"/>
    <owl:inverseOf rdf:resource="#customer"/>
    <dct:issued>2009-05-13</dct:issued>
    <rdfs:isDefinedBy rdf:resource="#"/>
  </rdf:Property>

  <rdf:Property rdf:about="#tenancyType">
    <rdfs:label xml:lang="en">Tenancy Type</rdfs:label>
    <rdfs:comment>The type of tenancy this resource describes.</rdfs:comment>
    <rdfs:domain rdf:resource="#Tenancy"/>
    <rdfs:range rdf:resource="#TenancyType"/>
    <dct:issued>2009-05-13</dct:issued>
    <rdfs:isDefinedBy rdf:resource="#"/>
  </rdf:Property>

  <rdf:Property rdf:about="#subscription">
    <rdfs:label xml:lang="en">Subscription</rdfs:label>
    <rdfs:comment>A subscription that enables the use of this tenancy.</rdfs:comment>
    <rdfs:domain rdf:resource="#Tenancy"/>
    <rdfs:range rdf:resource="#TenancyType"/>
    <dct:issued>2009-05-13</dct:issued>
    <rdfs:isDefinedBy rdf:resource="#"/>
  </rdf:Property>

  <rdf:Property rdf:about="#createdAt">
    <rdfs:label xml:lang="en">Created</rdfs:label>
    <rdfs:comment>
      The date on which the tenancy was created. Managing this allows multiple
      tenancies to be displayed in time order.
    </rdfs:comment>
    <rdfs:domain rdf:resource="#Tenancy"/>
    <rdfs:range rdf:resource="http://www.w3.org/2001/XMLSchema#dateTime"/>
    <dct:issued>2009-05-13</dct:issued>
    <rdfs:isDefinedBy rdf:resource="#"/>
  </rdf:Property>

  <rdf:Property rdf:about="#enabled">
    <rdfs:label xml:lang="en">Enabled</rdfs:label>
    <rdfs:comment>
      A simple boolean value that allows a tenancy to be enabled or disabled
      entirely.
    </rdfs:comment>
    <rdfs:domain rdf:resource="#Tenancy"/>
    <rdfs:range rdf:resource="http://www.w3.org/2001/XMLSchema#boolean"/>
    <dct:issued>2009-05-13</dct:issued>
    <rdfs:isDefinedBy rdf:resource="#"/>
  </rdf:Property>

  <rdf:Property rdf:about="#subscriptionLevel">
    <rdfs:label xml:lang="en">Subscription Level</rdfs:label>
    <rdfs:comment>
      The level at which the customer has subscribed to this tenancy.
    </rdfs:comment>
    <rdfs:domain rdf:resource="#Subscription"/>
    <rdfs:range rdf:resource="http://www.w3.org/2001/XMLSchema#dateTime"/>
    <dct:issued>2009-05-13</dct:issued>
    <rdfs:isDefinedBy rdf:resource="#"/>
  </rdf:Property>

  <rdf:Property rdf:about="#validUntil">
    <rdfs:label xml:lang="en">Valid Until</rdfs:label>
    <rdfs:comment>The date on which a subscription expires.</rdfs:comment>
    <rdfs:domain rdf:resource="#Subscription"/>
    <rdfs:range rdf:resource="http://www.w3.org/2001/XMLSchema#dateTime"/>
    <dct:issued>2009-05-13</dct:issued>
    <rdfs:isDefinedBy rdf:resource="#"/>
  </rdf:Property>

  <rdf:Property rdf:about="#validFrom">
    <rdfs:label xml:lang="en">Valid From</rdfs:label>
    <rdfs:comment>The date from which a subscription is valid.</rdfs:comment>
    <rdfs:domain rdf:resource="#Subscription"/>
    <rdfs:range rdf:resource="http://www.w3.org/2001/XMLSchema#dateTime"/>
    <dct:issued>2009-05-13</dct:issued>
    <rdfs:isDefinedBy rdf:resource="#"/>
  </rdf:Property>

  <rdf:Property rdf:about="#allowedFeature">
    <rdfs:label xml:lang="en">Allowed Feature</rdfs:label>
    <rdfs:comment>
      A feature that is allowed for subscriptions at this subscription level.
      This allows for a white-listing approach to feature control.
    </rdfs:comment>
    <rdfs:domain rdf:resource="#SubscriptionLevel"/>
    <rdfs:range rdf:resource="#Feature"/>
    <dct:issued>2009-05-13</dct:issued>
    <rdfs:isDefinedBy rdf:resource="#"/>
  </rdf:Property>

  <rdf:Property rdf:about="#disallowedFeature">
    <rdfs:label xml:lang="en">Disallowed Feature</rdfs:label>
    <rdfs:comment>
      A feature that is not allowed for subscriptions at this subscription
      level. This allows for a black-listing approach to feature control.
    </rdfs:comment>
    <rdfs:domain rdf:resource="#SubscriptionLevel"/>
    <rdfs:range rdf:resource="#Feature"/>
    <dct:issued>2009-05-13</dct:issued>
    <rdfs:isDefinedBy rdf:resource="#"/>
  </rdf:Property>
</rdf:RDF>

License

This work is licensed under a Creative Commons License.

The following section is informational only, please refer to the Original License for complete license terms.

This license grants the following rights:

making multiple copies (http://web.resource.org/cc/Reproduction)
distribution, public display, and publicly performance (http://web.resource.org/cc/Distribution)
creation and distribution of derivative works (http://web.resource.org/cc/DerivativeWorks)

This license imposes the following restrictions:

copyright and license notices be kept intact (http://web.resource.org/cc/Notice)
credit be given to copyright holder and/or author (http://web.resource.org/cc/Attribution)

Multi-Tenant Configuration Schema

Table of Contents

Introduction

Changes From Previous Version

Namespace

Summary of Terms

Vocabulary Classes

Class: Customer

History

Class: Feature

History

Class: Subscription

History

Class: SubscriptionLevel

History

Class: Tenancy

History

Class: TenancyType

History

Vocabulary Properties

Property: allowedFeature

History

Property: createdAt

History

Property: customer

History

Property: disallowedFeature

History

Property: enabled

History

Property: subscription

History

Property: subscriptionLevel

History

Property: tenancy

History

Property: tenancyType

History

Property: validFrom

History

Property: validUntil

History

Examples

Diagram of Multi-Tenant Configuration Schema

RDF Schema

License
